LG Split Air Conditioner – 3 Ton – I38TCF
CAPACITY
- Cooling – Min ~ Rated ~ Max(kW)1.77/9.10/11.13Cooling – Min ~ Rated ~ Max(Btu/h)6,035/31,000/38,000
- Cooling (T3) – Min ~ Rated ~ Max(kW)3.21/7.77/8.79Cooling (T3) – Min ~ Rated ~ Max(Btu/h)10,940/26,500/30,000
POWER INPUT
- Cooling – Min ~ Rated ~ Max(W)529/2,520/3,990Cooling (T3) – Min ~ Rated ~ Max(W)1,490/3,050/3,990
RUNNING CURRENT
- Cooling – Min ~ Rated ~ Max(A)3.82/11.60/17.00Cooling (T3) – Min ~ Rated ~ Max(A)6.66/14.00/17.00
EER
- EER(W/W)3.61EER((Btu/h)/W)12.25
EER(T3)
- EER (T3)(W/W)2.55EER (T3)((Btu/h)/W)8.69
ENERGY LABEL GRADE
- Cooling5
POWER SUPPLY
- Ø / V / Hz1 , 220 ~ 240 ,50
AVAILABLE VOLTAGE RANGE
- Available Voltage Range(V)187 ~ 276
POWER FACTOR
- Cooling(%)94.4
MOISTURE REMOVAL
- Moisture Removal(l/h)1.49
INDOOR
- Air Flow Rate – Cooling, Max / H / M / L(㎥/min)32/25/21/17Sound Pressure Level – Cooling, Max / H / M / L / SL(dB(A))52/47/43/34

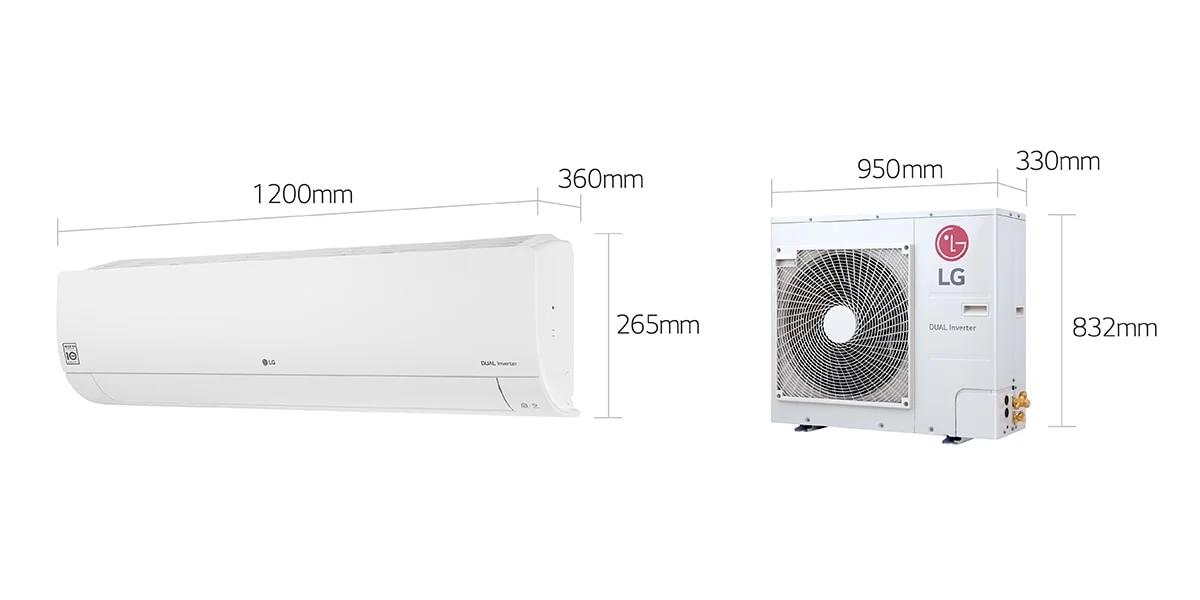

- Dimensions (W × H × D) – Net(mm)1200 x 360 x 265Dimensions (W × H × D) – Shipping(mm)1280 x 455 x 357
- Weight – Net(kg)18.5Weight – Shipping(kg)22.2
- Exterior Color CodeMunsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
- Air Flow Rate – Max(㎥/min)71.0Sound Pressure Level – Cooling, Rated(dB(A))58
- Dimensions (W × H × D) – Net(mm)950 x 832 x 330Dimensions (W × H × D) – Shipping(mm)1130 x 908 x 456
- Weight – Net(kg)63.9Weight – Shipping(kg)69.4
- Max. Fuse Size(A)25Exterior Color CodeMunsell 9.54Y 8.34/1.31
- Operation Range – Cooling(℃ DB)18 ~ 54
CIRCUIT BREAKER
- Circuit Breaker(A)25
POWER SUPPLY CABLE
- Power Supply Cable (No. × ㎟)3 x 2.5
POWER SUPPLY TO UNIT
- Power Supply to UnitOutdoor
POWER AND COMMUNICATION CABLE
- Power and Communication Cable(No. × ㎟)4 x 1
PIPING
- Size – Liquid(mm)Ø 9.52Size – Gas(mm)Ø 15.88
- Connections Method – Indoor / OutdoorFlared/Flared
DRAIN HOSE SIZE
- O.D, I.D(mm)20, 15
BETWEEN INDOOR & OUTDOOR
- Piping Length – Min / Standard / Max(m)5/7.5/30Piping Length – No Charge(m)7.5
- Max. Elevation Difference(m)25Piping Connection Heat InsulationBoth liquid and Gas Pipes
REFRIGERANT
- TypeR410APre Charge(g)2400
- Additional Charge(g/m)30ControlElectronic Expansion Valve
TOOL CODE(CHASSIS)
- Indoor / OutdoorSR/U4
COMPRESSOR
- TypeTwin RotaryModelGPT330MAB
- Motor TypeBLDCOil Type / MakerPVE (FVC68D)/IDEMITSU
- Oil Charge (cc)1300Manufacturer / Country of OriginLG Electronics/Korea
FAN(INDOOR)
- TypeCross Flow FanMotor Output (W)113.1
FAN(OUTDOOR)
- TypePropeller FanMotor Output (W)124
- Motor InsulationClass EMotor Enclosure / Ingress ProtectionTEAO/IPX4
HEAT EXCHANGER
- Evaporator – Material, Tube / FinCu/AlEvaporator – Corrosion ProtectionPCM
- Condenser – Material, Tube / FinCu/AlCondenser – Corrosion ProtectionGold
- Condenser – Fin TypeLouver
